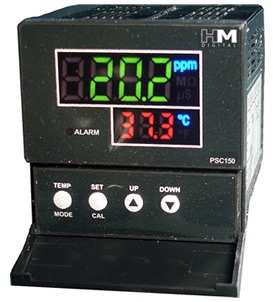

- HM Digital PSC-150: Extended Range EC/TDS Controller
Move your mouse over image or click to enlarge


We are an official HM Digital Distributor for the Philippines.
PSC-150 has one year warranty.

New controller includes extended range, digital calibration, on-screen temperature and tri-color display.

FEATURES

  • Monitors and controls TDS levels for high output commercial systems.
  • Large, bright L.E.D. display.
  • An alarm will sound if the TDS level rises above the user-set level.
  • On-screen temperature display (C/F).
  • Installs easily in minutes.
  • Includes one sensor probe (at no extra cost).
  • Protective cover also available (sold separately)


SPECIFICATIONS

EC Range: 0-9999 µS
TDS Range: 0 - 5000 ppm
Temperature Range: 1-75°C; 33-167 °F
Accuracy: ±2%
Conversion Factor: NaCl (avg. 0.5)
Resolution: 0.1 µS/ppm (0-999); 1 µS/ppm (1000-9999)
ATC: Yes (1 - 65°C)
Calibration: Adjustable (manual)
Setting: Controlled by on-screen up/down buttons
Relay Control: The unit will open or close a circuit via dry contacts when the ppm/µS level reaches or exceeds the control setting (simple switch).  It can be used to control a pump, solenoid valve or other device.
Relay Voltage: 5V
Alarm: Optional steady beep (set by user)
Display: Bright 5/8" L.E.D. display
Probe: 1/2" bushing (NPT), 3 meter (9.8 ft) shielded cable
Power supply: AC 110V / AC 220V
Dimensions: 7.2 x 7.2 x 10.2 cm (2.8 x 2.8 x 4 in.)
Monitor Weight: 476 g (1 lb .8 oz)
Total Weight: 680.4 g (1 lb 8 oz)
